Huron Automatic Screw Company produces two similar parts used in the drivetrain of Class 8 heavy-duty trucks. Pressure to offer cost savings to the customer meant the Huron Automatic team needed to reflect on the part’s function, design, and machining process and cycle time. The team identified the opportunity for redesign and produced prototypes for testing. The end result provided a shorter part cycle time and a cost savings for the customer.

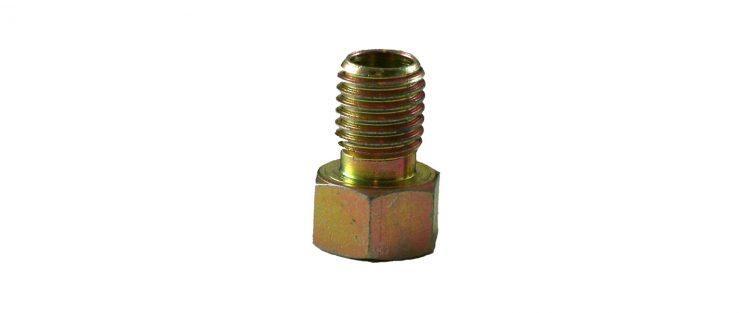

Huron Automatic Screw Company has been producing two similar parts for many years. These parts are used in the drivetrain of Class 8 heavy-duty trucks and are classified as an adapter stud with both internal and external threads. The parts have holes drilled though their entire length (over 1.5”) with the entire length of the hole being threaded with a ½-20 UNF 2B internal thread.
Huron Automatic Screw Company’s customer needed costs to be reduced on this part and was looking to Huron for suggestions.
The Huron Automatic Screw Company team had the knowledge to identify that the internal thread’s length was the determining factor in the long machining time and contributed to much of the cost. Hypothesizing about what could be done to reduce costs, the team looked in this direction for potential engineering modifications.
Huron Automatic Screw Company investigated the end use of the part to better understand its function, finding that only 60% of the internal thread was being used to engage the mating part. The team put together an alternative design that featured a larger unthreaded hole on one end of the part.
The prospective changes and sample parts were submitted to the customer for review. The adjustments reduced cycle time and subsequently lowered cost while still providing the number of threads needed for proper engagement with the mating part. The customer’s engineering department agreed to the modified design resulting in the requested cost savings while retaining the part’s full functionality.
While Huron Automatic Screw Company could continue producing the part as-is without issue the customer required reduced cost. The team investigated the part’s end use to identify opportunities for redesign, produced prototypes for testing, and solved the cost-savings issue.
In conclusion, Huron Automatic Screw Company was able to help redesign a part for shorter cycle time and customer cost savings. Their ability to troubleshoot and expertise in machining allowed for a positive end result.
About Huron Automatic Screw Company
With over 85 years of experience, Huron Automatic Screw Company is highly regarded in the fastener manufacturing industry for product excellence and quick turnaround, making us an ideal partner to handle your prototype through production quantity jobs. Our precision machined threaded fasteners, pins, spacers and other parts are purchased by fastener distributors, component manufacturers and OEMs across the United States and go into a wide variety of components such as axles, power trains, suspensions, engines and steering components.
Our tradition of quality and our use of innovative modern manufacturing practices have been our company’s competitive edge in manufacturing precision machined products. Add to that our reputation for on-time delivery and competitive prices, and you’ve got every answer you need to give us a try on your next project.
Huron Automatic Screw Company has been producing a part used in the drivetrain of Class 8 heavy-duty trucks for many years. There was only one type of steel to be used for this part’s production. The allowed steel material contained lead, which improved machinability. Demand for the parts increased and resulted in decreased availability of the leaded material. Huron Automatic Screw Company took the initiative to address the issue; testing alternative materials and finding a cost savings for both the distributor and end user.
Huron Automatic Screw Company has been producing a part used in the drivetrain of Class 8 heavy-duty trucks for many years. There are two variations of this product. There is a specific type of steel (41L40) used to produce this part. The steel material 41L40 contains lead to improve machinability.
Demand of the parts began to increase, which coincided with decreased availability of the leaded 41L40 material. It was found that domestic suppliers were eliminating the manufacturing of materials containing lead and foreign suppliers were limiting its use, extending lead times to 4-6 months. Material sourcing became increasingly difficult, solidifying the 41L40 availability issue.
Huron Automatic Screw Company hypothesized that specifications for the hex nut could be opened up to include other materials that are more readily available and at a lower cost. In their research, the team found that the original part specifications only required heat treatment to provide a certain hardness level. There were no mechanical property requirements. This opened up the possibility of using more readily available materials.
First, the customer was approached with material availability problem. While the customer was sensitive to the issue, they did not have the engineering expertise to suggest an alternative.
The team at Huron Automatic Screw Company used their knowledge and experience of materials and machining to source several new material options. At their own expense, the team purchased the alternative materials and proceeded to process test material parts.
The prospective new parts were submitted to the customer for review. Extensive information regarding the situation was provided for the customer to analyze. One of the options that Huron Automatic Screw Company proposed was available at a much lower price. This was chosen as a permanent new material for the part moving forward.
While Huron Automatic Screw Company could support increased demand of the part from a manufacturing standpoint, they were extremely challenged to find raw material. The team coordinated testing of new materials through multiple levels of communication.
In conclusion, this case study has set out to show Huron Automatic Screw Company’s ability to troubleshoot and solve machining issues. Their expertise allowed for a positive end result in the sourcing and testing of new materials. In this particular case, implementing a new material resulted in improved delivery of the part at a lower cost to the end user.
